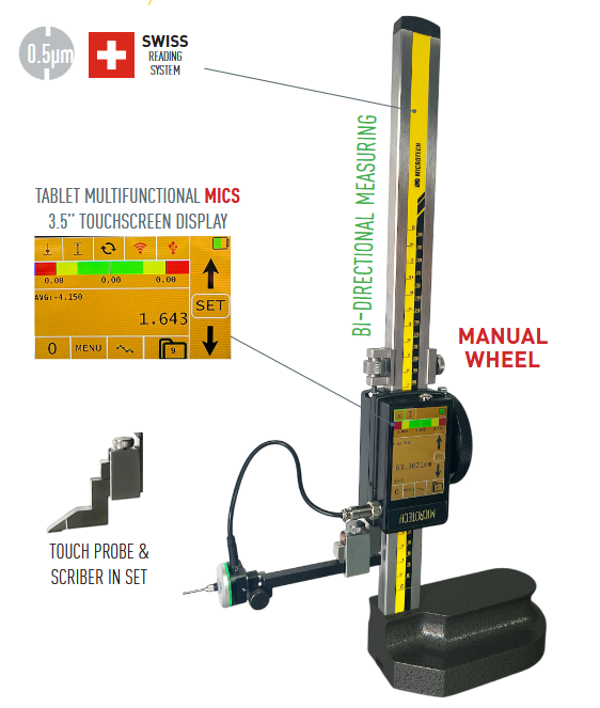

Digital Touch Probe Height Gage with Touch Screen

0-12 Inch Measuring Range

Other sizes available. To be listed soon.

Units: Inch or Metric (selectable)

Resolution: .00001 Inch (10 micro-inches) OR 0.5 Micron

Adjustable resolution: (ex: .0005/.001/.01/.1 mm OR inch equivalents)

Accuracy: .0004 Inch OR 10 Microns (.010 mm)

Bi-Directional Measuring

• Touch Probe Height Gage with 3.5” color touch screen interface
• Swiss reading system with .00001 inch (10 micro-inch) resolution OR 0.5 micron resolution (.0005/.001/.01/.1 mm).
• Manual wheel with fine adjustment
• 5-axis touch trigger probe with interchangeable stylus on holder arm with rotation.
• Carbide-tipped scriber can be installed (in delivery set)

• Bi-directional measuring
• Functions: On-line Graphic, Analog scale, Go/NoGo, Max/Min, Formula’s, Timer, Linear correction, Temperature correction, FW update,
Calibration date control, e-Link to manual and app download, Operating hours control
• Measuring HUB: Wireless instrument connection, Synchronization, 2D mode, 2D Graph, Probe mode, Angle meaasuring
• Memory manager: 2000 values, Folders system, Statistics mode, Memory data transfer
• DATA TRANSFER: WIRELESS to MDS app (Windows, Android, iOS, MacOS); WIRELESS HID, USB HID direct to any app
• Built-in rechargeable Li-Pol battery (charging through USB port).
• Calibration certificate included (ISO 17025)
