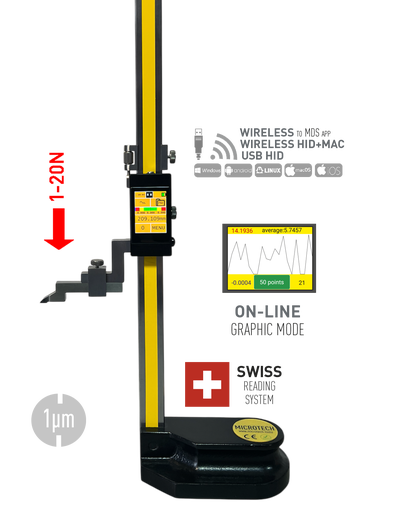

The Touch Screen Smart Height Gage with Force Control from Microtech provides precise, repeatable measurements with adjustable measuring force (1–20 N), wireless connectivity, and USB data output. The touch screen interface allows the user to select the desired measuring force, helping maintain consistent measurement conditions. Automatic force mode can save values to internal memory or transfer them to the app when the selected force is reached.

Lead time: Ships in approximately 3-4 weeks (made to order)

Measurement Units: Inch or Metric (selectable)
Resolution: .0005 mm or inch equivalent

Measurement Ranges:
• 12 inch / 300 mm
• 20 inch / 500 mm

Touch Screen Measuring Module Features:
• Online graphical display
• Color analog adjustable scale
• HUB connection (external wireless device connection)
• 2D connection options (external device wireless connection and display)
• Probe connection (external indicator or lever indicator wireless connection) with auto mode
• Internal memory for 2000 values with folder system and statistics
• Force control (1–20 N) with automatic measuring mode
• Limits (Go/NoGo) function with color indication
• Peak (Max/Min)
• Timer
• Manual temperature compensation
• Linear compensation
• Measurement Units: Inch or Metric (selectable)
• Resolution: .0005 mm or inch equivalent
• Calibration date control
• Rechargeable Li-Pol battery with micro-USB socket Wireless Data Transfer Options:
• Wireless transfer to MDS app (Windows, Android, iOS)
• Wireless HID mode to any device or app (keyboard mode)
• USB HID data transfer to any system or application (keyboard mode)

All height gages pass metrological control in an ISO 17025 accredited laboratory. Measuring surfaces are hand finished to Ra < 0.32 for precision contact and measurement stability.
