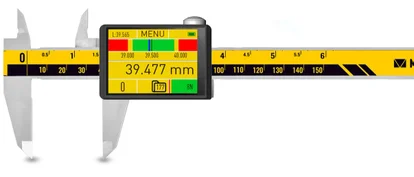

The Touch Screen Smart Calipers from Microtech delivers precise, repeatable measurements with force control (1–20 N), wireless connectivity, and USB data output. The touch screen menu allows you to select the measuring force, ensuring consistent results. Automatic force mode can save measurements to memory or transfer them to the app when the chosen force is reached.

Lead time: Ships in approximately 3-4 weeks (made to order)

Measurement Units: Inch or Metric (selectable)

Selectable resolution: 0.1 / 0.01 / 0.001 mm (or inch equiv.)

Measurement Ranges:
• 150 mm / 6 inch
• 200 mm / 8 inch
• 300 mm / 12 inch

Jaws Type: Standard

Touch Screen Measuring Module Features:
• Online graphical display
• Color analog adjustable scale
• HUB connection (external wireless device connection)
• 2D connection options (external device wireless connection and display)
• Probe connection (external indicator or lever indicator wireless connection) with auto mode
• Internal memory for 2000 values with folder system and statistics
• Limits (Go/NoGo) function with color indication
• Peak (Max/Min)
• Timer
• Manual temperature compensation
• Linear compensation
• Measurement Units: Inch or Metric (selectable)
• Selectable resolution: 0.1 / 0.01 / 0.001 mm, also in inches
• Calibration date control
• Rechargeable Li-Pol battery with micro-USB socket
Wireless Data Transfer Options:
• Wireless transfer to MDS app (Windows, Android, iOS, macOS)
• Wireless HID mode to any device or app (keyboard mode)
• Wireless HID+MAC mode to any device or app (keyboard mode with MAC address)

All calipers pass ISO 17025:2019 accredited metrological control. Each unit includes a calibration protocol, manual,charging cable, and protective plastic case.
