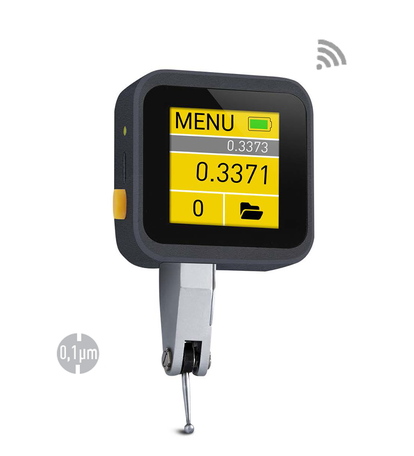

The Touch Screen Smart Test Indicator by Microtech is designed for precision linear measurements. These smart test indicators feature a high-resolution measuring system with intuitive touch screen operation, providing reliable and repeatable measurements in professional environments. A built-in rechargeable battery and wireless/USB data transfer allow for flexible use across a wide range of applications.

Lead time: Ships in approximately 3-4 weeks (made to order)

Measurement Units: Inch or Metric (selectable)
Resolution: 0.0001 mm or inch equivalent

Measuring Module Features:
• Internal memory with statistics mode
• Color Go/NoGo indication (limits)
• Peak function (Max/Min)
• Timer (reading to memory or data transfer)
• Manual temperature compensation
• Resolution selection (0.1 / 1 / 10 microns)
• Inch/Metric selection
• Wireless data transfer to Windows, iOS, and Android devices
• USB HID data transfer to Windows, macOS, Linux, and Android (keyboard mode)
• Built-in rechargeable Li-Pol battery with magnetic charger
• Color high-resolution display (1.54") with touch screen
• Long-range wireless data transfer capability

All Microtech test indicators pass metrological control in an ISO 17025 accredited laboratory and are supplied with a calibration protocol and user manual.
