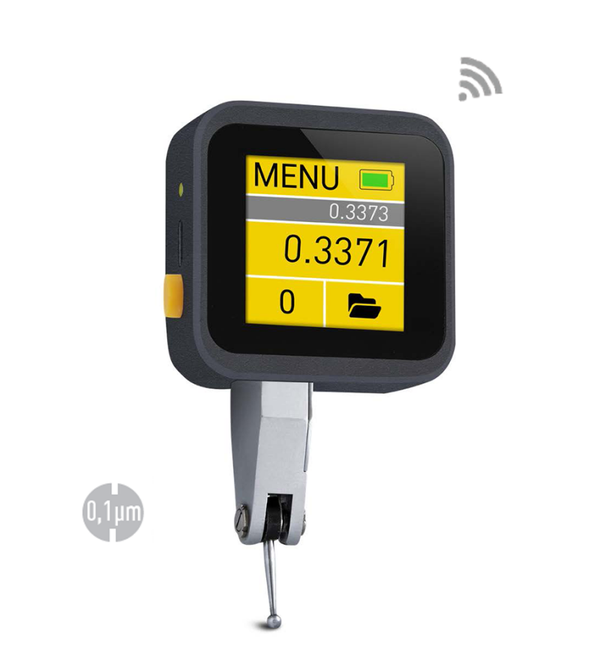

Digital Test Indicator (Lever Style) | Touch Screen Precision Measuring Tool

High precision digital test indicator with lever style probe and touch screen interface for accurate linear measurement and repeatability. Designed for professional metrology applications with wireless connectivity and real-time data output.

Lead time: Ships in approximately 3-4 weeks (made to order)

• Measurement Units: Inch or Metric (selectable)
• Resolution: 0.0001 mm or inch equivalent
• Resolution modes: 0.1 / 1 / 10 microns
• Display: 1.54” high-resolution color touch screen

Key Features:

• Lever style test indicator design for precision contact measurement
• Touch screen interface with real-time operation
• Internal memory with statistical analysis mode
• Go / No Go tolerance indication with color feedback
• Peak (Max/Min) value tracking
• Timer function with data storage or transfer options
• Manual temperature compensation
• Wireless long range data transmission
• USB data output (HID keyboard mode)
• Rechargeable Li-Pol battery with magnetic charging system
• Inch/Metric selectable operation
• Built-in wireless connectivity for multi-device integration

• Wireless transfer to MDS app (Windows, iOS, Android)
• USB HID output compatible with Windows, macOS, Linux, Android
• Long-range wireless measurement data transmission

Quality & Certification:
All Microtech test indicators are manufactured under ISO 17025 accredited metrological control and supplied with a calibration protocol and user manual to ensure traceable measurement accuracy and repeatability.

*See Shop Policies for returns and terms.
