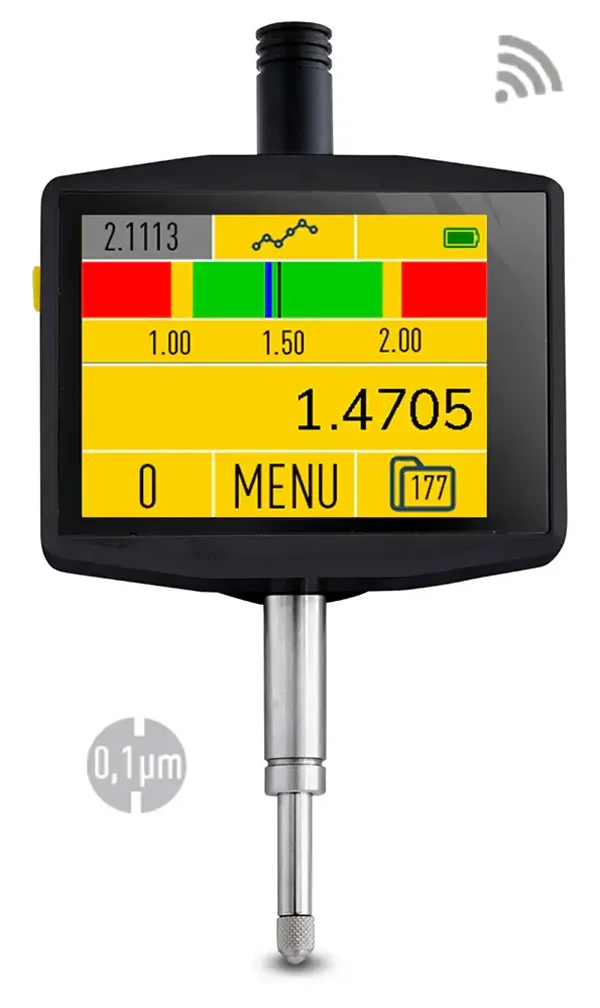

Digital Indicator with Touch Screen | High Precision Smart Measurement Tool

High precision digital indicator with touch screen interface and 0.1 micron resolution for advanced linear measurement applications. Designed for fast, repeatable measurements with wireless connectivity and real-time data output.

Lead time: Ships in approximately 3-4 weeks (made to order)

Specifications:

• Measurement Units: Inch or Metric (selectable)
• Measuring Ranges:
  • 0–12.7 mm / 0.5 inch
  • 0–25.4 mm / 1 inch
  • 0–50.8 mm / 2 inch
• Accuracy: ±0.002 mm
• Resolution: 0.0001 mm or inch equivalent
• Measurement speed: 50 values/sec

Key Features:

• Touch screen measurement system with real-time graphical display
• Color analog scale visualization
• Go / No-Go tolerance limits with visual indicators
• Peak (Max/Min) tracking
• Timer function
• Internal memory for up to 2000 values with folder organization and statistics
• Manual and linear temperature compensation
• Calibration date tracking
• Probe/lever indicator compatibility with automatic mode
• HUB connection for external wireless integration
• 2D wireless display and system connectivity
• Rechargeable Li-Pol battery with micro-USB charging

• Wireless data transfer to MDS app (Windows, Android, iOS)
• Wireless HID keyboard-mode output (configurable)
• USB HID keyboard-mode output (configurable)

All Microtech digital indicators are manufactured under ISO 17025 ILAC-accredited metrological control using automated calibration systems to ensure accuracy, repeatability, and measurement reliability.
