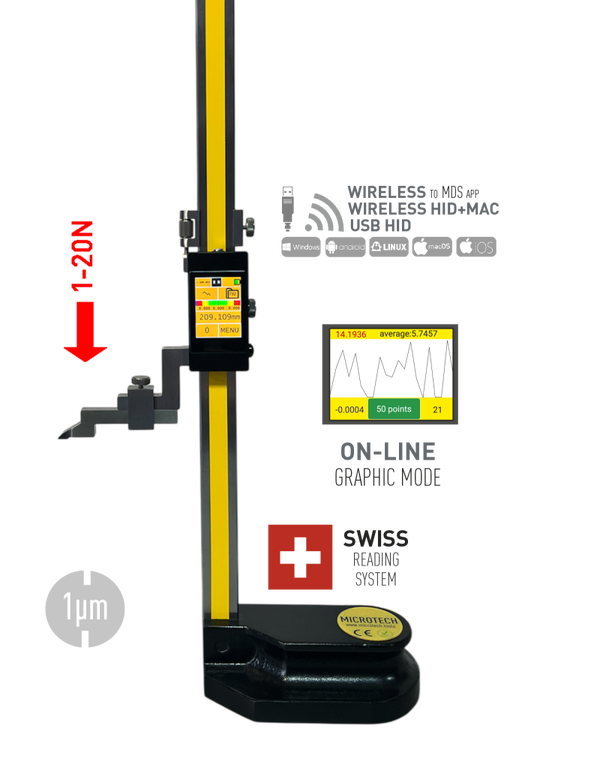

Digital Height Gage with Touch Screen | Force Control Precision Measuring Tool

High precision digital height gage with touch screen interface and adjustable force control (1–20N) for consistent, repeatable measurement accuracy. Designed for professional metrology applications requiring reliable vertical measurement and data management.





Lead time: Ships in approximately 3-4 weeks (made to order)



Specifications:

• Measurement Units: Inch or Metric (selectable)
• Resolution: 0.0005 mm or inch equivalent
• Measurement Ranges:
  • 300 mm / 12 inch
  • 500 mm / 20 inch

Key Features:

• Adjustable measuring force (1–20N) for consistent measurement pressure
• Touch screen interface with force selection control
• Automatic force mode for data capture and storage
• Real-time graphical measurement display
• Color analog scale visualization
• Go / No-Go tolerance limits with color indicators
• Peak (Max/Min) value tracking
• Timer function
• Internal memory for up to 2000 measurements with folder organization
• Statistical measurement analysis
• Manual and linear temperature compensation
• Calibration date tracking
• Rechargeable Li-Pol battery with micro-USB charging



Connectivity & Data Transfer:

• Wireless data transfer to MDS app (Windows, Android, iOS)
• Wireless HID keyboard-mode output (any device or software)
• USB HID keyboard-mode output (universal compatibility)
• HUB connection for external wireless device integration
• 2D wireless display and system connectivity options
• Probe/lever indicator wireless integration with automatic mode

Quality & Certification:
All Microtech height gages are manufactured under ISO 17025 accredited metrological control. Measuring surfaces are hand-finished to Ra < 0.32 to ensure precision contact stability and measurement reliability.
