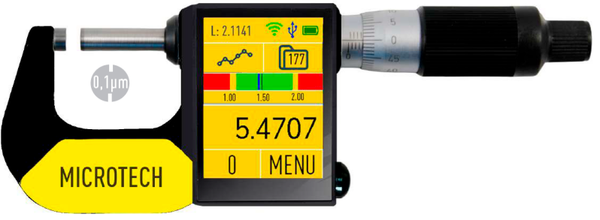

Digital Micrometer with Touch Screen | Smart Precision Measurement
$654.00
High precision digital micrometer with touch screen interface for advanced measurement visualization, data management, and wireless connectivity. Designed for professional metrology applications requiring micron-level accuracy and repeatability.
Lead time: Ships in approximately 3-4 weeks (made to order)
Specifications:
- Measurement Units: Inch or Metric (selectable)
- Resolution: 0.00001 inch (10 microinches) / 0.1 micron
- Accuracy: ±0.00004 inch / ±1 micron (0.001 mm)
- Repeatability: ±0.00002 inch / 0.5 micron (0.0005 mm)
Key Features:
- Real-time graphical measurement visualization
- Color analog scale for intuitive readings
- Wireless hub connectivity for Microtech devices
- 2D wireless display compatibility with external systems
- Probe integration with automatic mode switching
- Internal memory (up to 2000 measurements) with folder organization
- Statistical analysis functions
- Go / No-Go tolerance limits with color indicators
- Peak max/min value tracking
- Timer function
- Manual and linear temperature compensation
- Selectable resolution in metric and inch formats
- Ratcheting thimble for controlled repeatability
- Calibration date tracking
Connectivity & Data Transfer:
- Rechargeable Li-Pol battery with micro-USB charging
- Wireless long-range data transfer to Microtech MDS app
(Windows / Android / iOS) - Wireless HID keyboard-mode output (configurable)
- USB HID keyboard-mode output (configurable)
Quality & Certification:
All Microtech micrometers feature hand finished measuring surfaces (Ra < 0.32) and undergo metrological inspection in an ISO 17025 accredited laboratory.
