CMM Fixture Plates for In-Stock and Custom Applications

Precision fixture plates for standard configurations or custom CMM applications.

GET HELP / REQUEST QUOTE

Need help selecting plates, posts, or fixture accessories? We can help you choose the correct accessories for your setup needs.

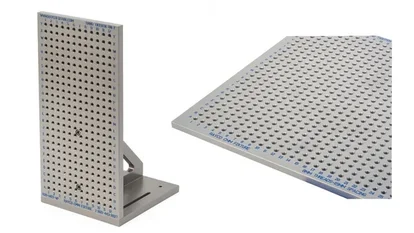

Rayco CMM Fixture Plates are designed to provide a flexible, high precision foundation for coordinate measuring machine fixtures. Built to improve setup speed and consistency, these plates offer a practical alternative to traditional granite surfaces with limited hole spacing.

Unlike standard CMM tables, Rayco CMM Fixture Plates feature a dense grid of threaded holes, allowing for faster setups, greater positioning flexibility, and reduced overall inspection time.

Key Features & Benefits

• Close Hole Spacing – Enables more precise positioning compared to traditional CMM granite plates
• Faster Setup Times – Quickly locate and secure parts with minimal adjustment
• Repeatable Fixturing – Consistent setups across multiple inspections
• Alphanumeric Grid System – Easily record and recreate exact fixture positions
• Technician-to-Technician Consistency – Standardized layouts improve repeatability between operators
• Modular Compatibility – Works with clamps, locators, risers, and other inspection fixturing components

Built for Accuracy and Durability

Rayco CMM Fixture Plates are manufactured from high-quality aluminum and precision-machined to maintain flatness and dimensional accuracy. This ensures reliable measurement results across a wide range of inspection applications.

Available in multiple sizes and thicknesses, these plates integrate easily with various coordinate measuring machine configurations.

Applications

• Coordinate measuring machine (CMM) inspection
• Modular inspection fixturing
• Part positioning and repeat measurement setups
• Quality control and dimensional verification

Specifications

• Material: Aluminum
• Hole Pattern: Threaded grid (close spacing)
• Markings: Alphanumeric X-Y axis identification
• Sizes: Multiple options available
• Compatibility: Standard CMM fixtures and modular fixturing components

Why Rayco CMM Fixture Plates

Rayco CMM Fixture Plates improve efficiency by reducing setup time while increasing flexibility and repeatability. With clearly marked coordinates and a dense hole pattern, they allow technicians to document and recreate setups with accuracy—resulting in more consistent inspections and higher-quality outcomes.
